2014 Mercedes-Benz CLA-Class Photo Gallery and Quick Reference Guide

Thirty-one photos of the 2014 Mercedes-Benz CLA 250 along with Technical Data and Equipment list

by  John Clark  |

|

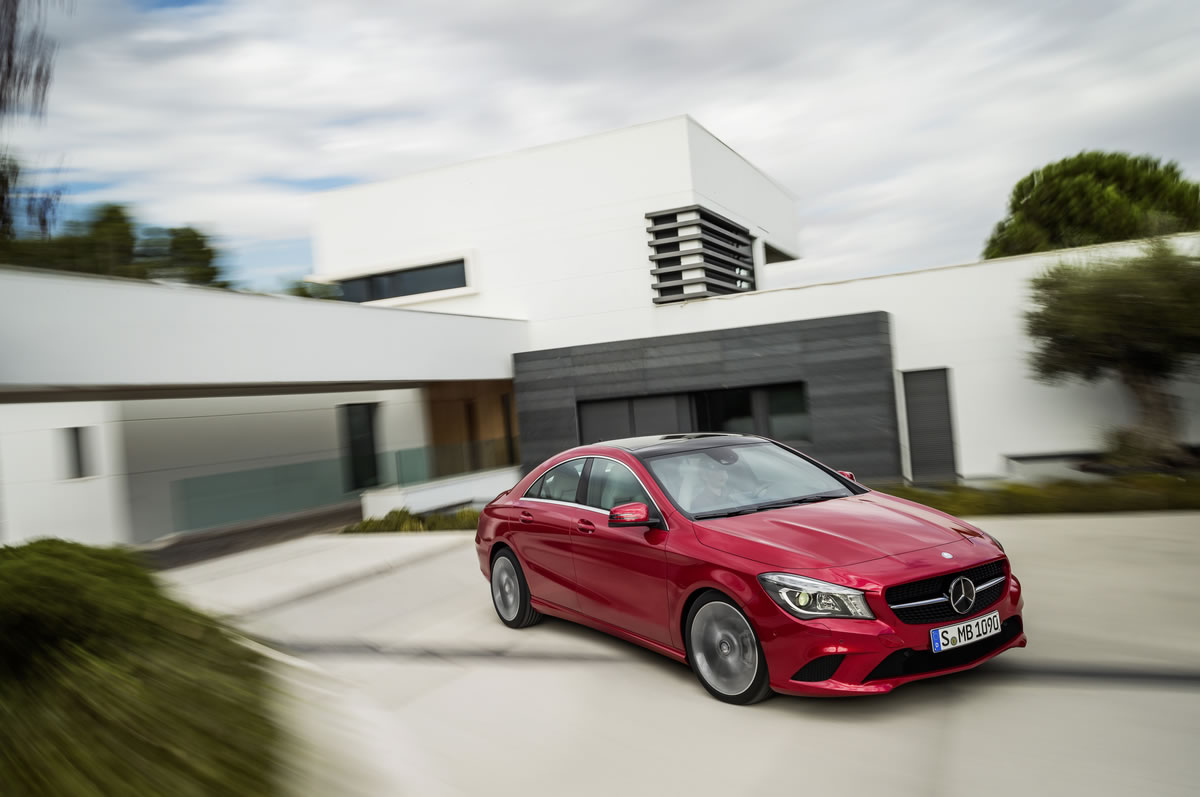

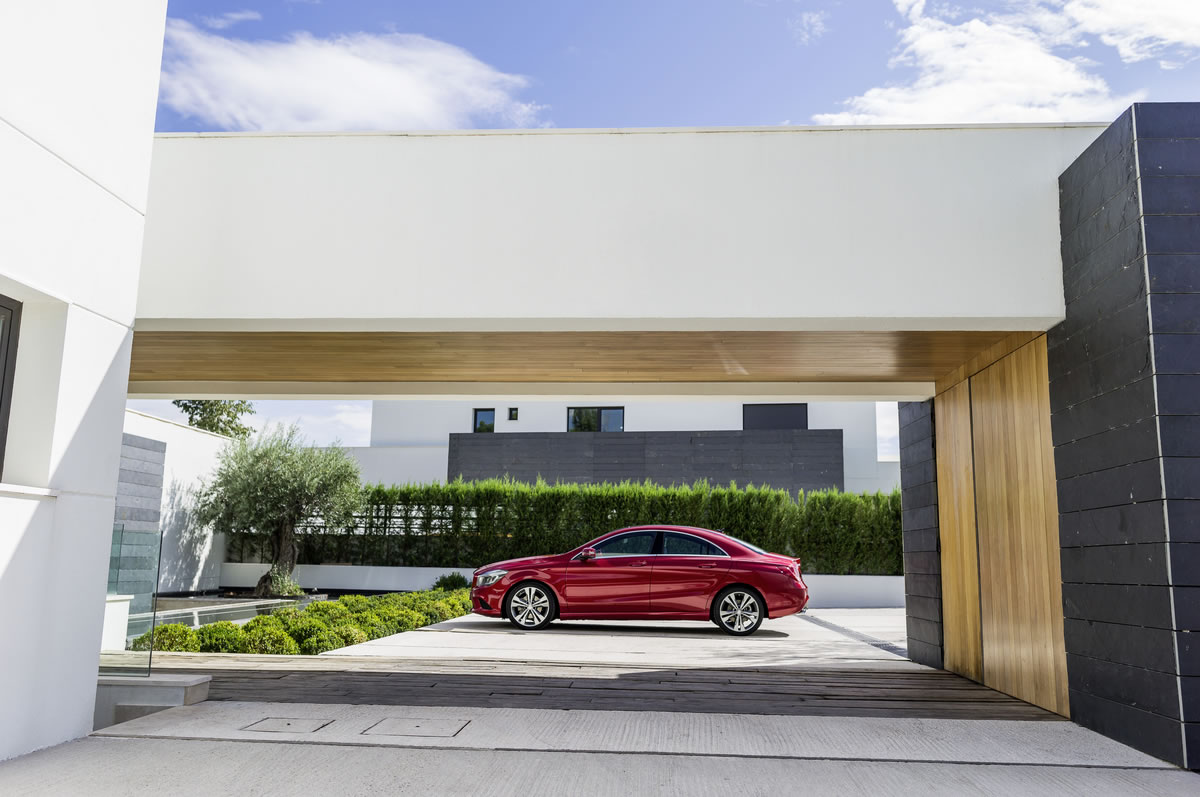

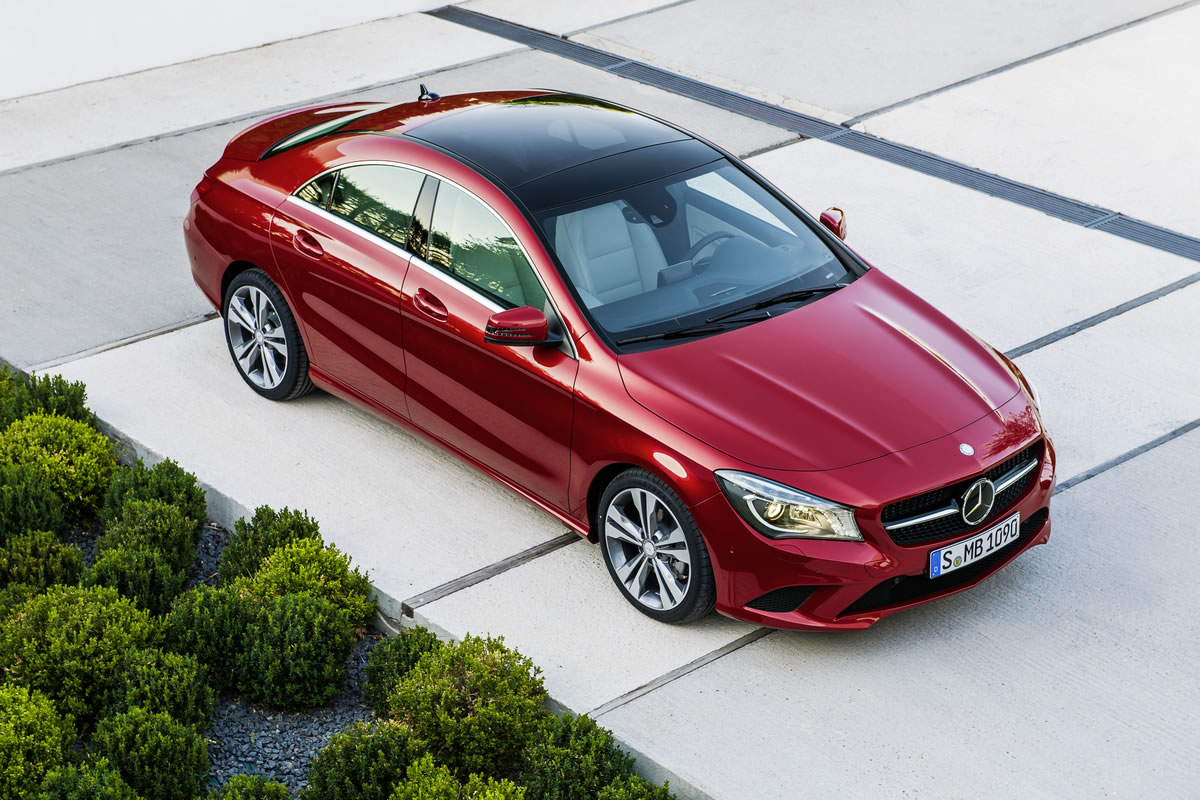

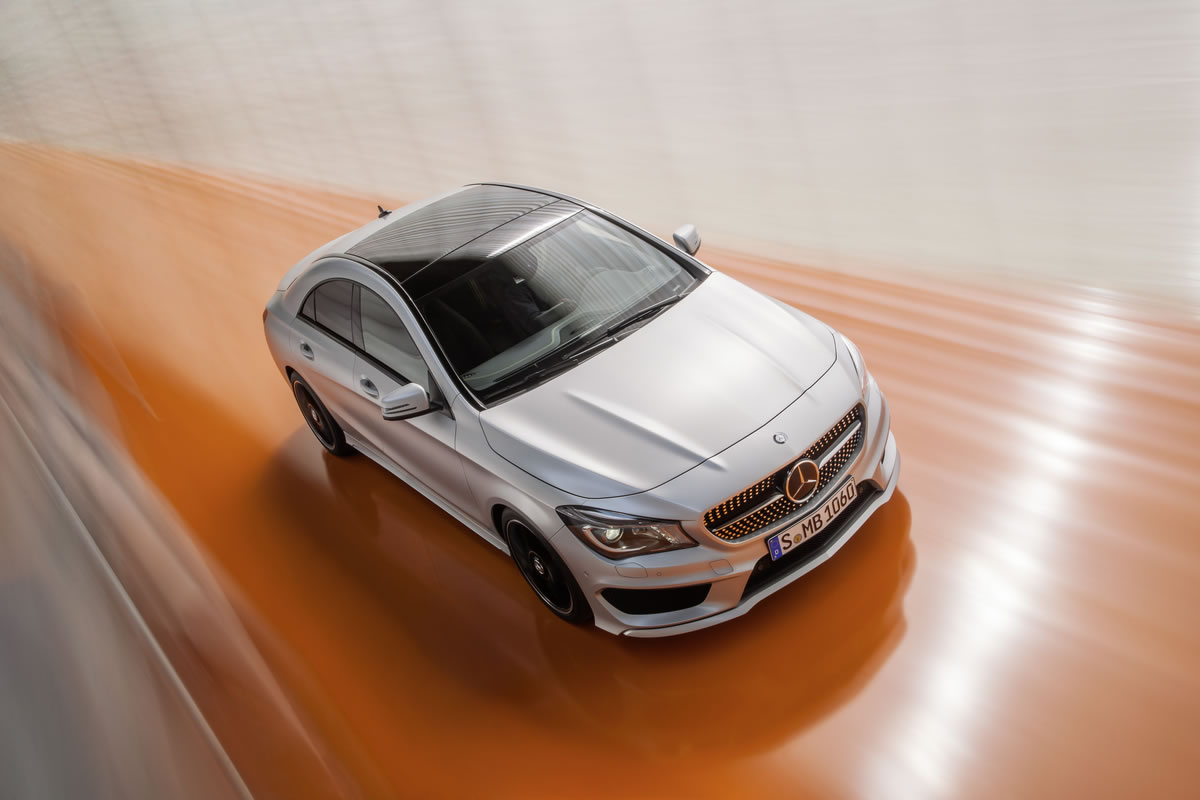

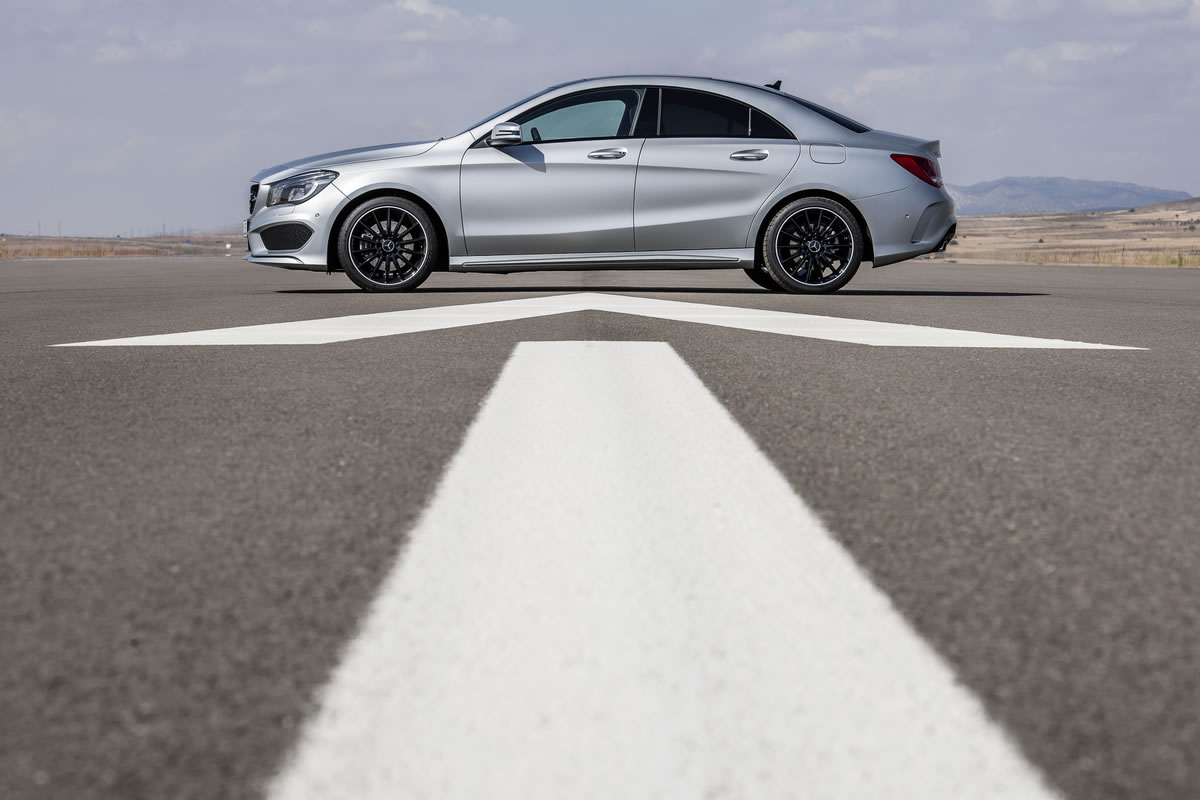

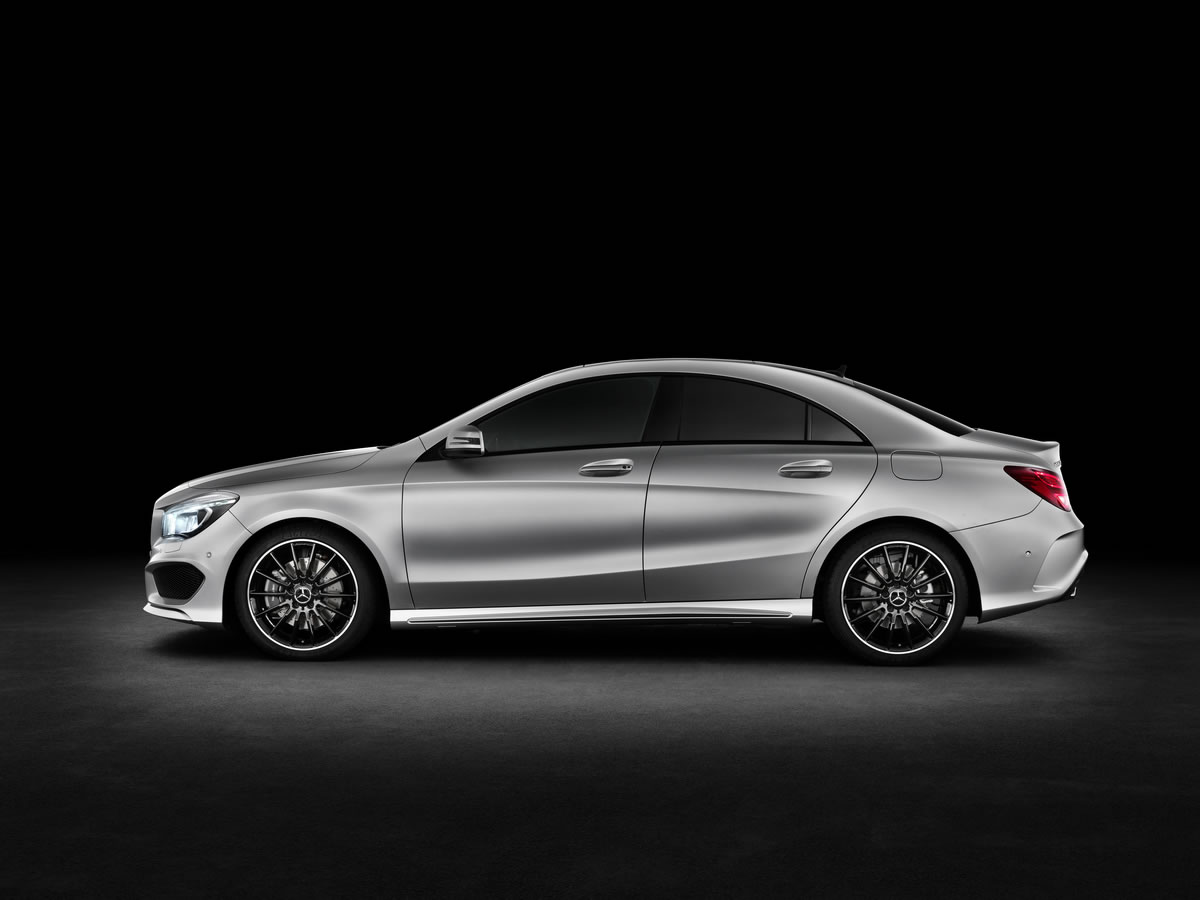

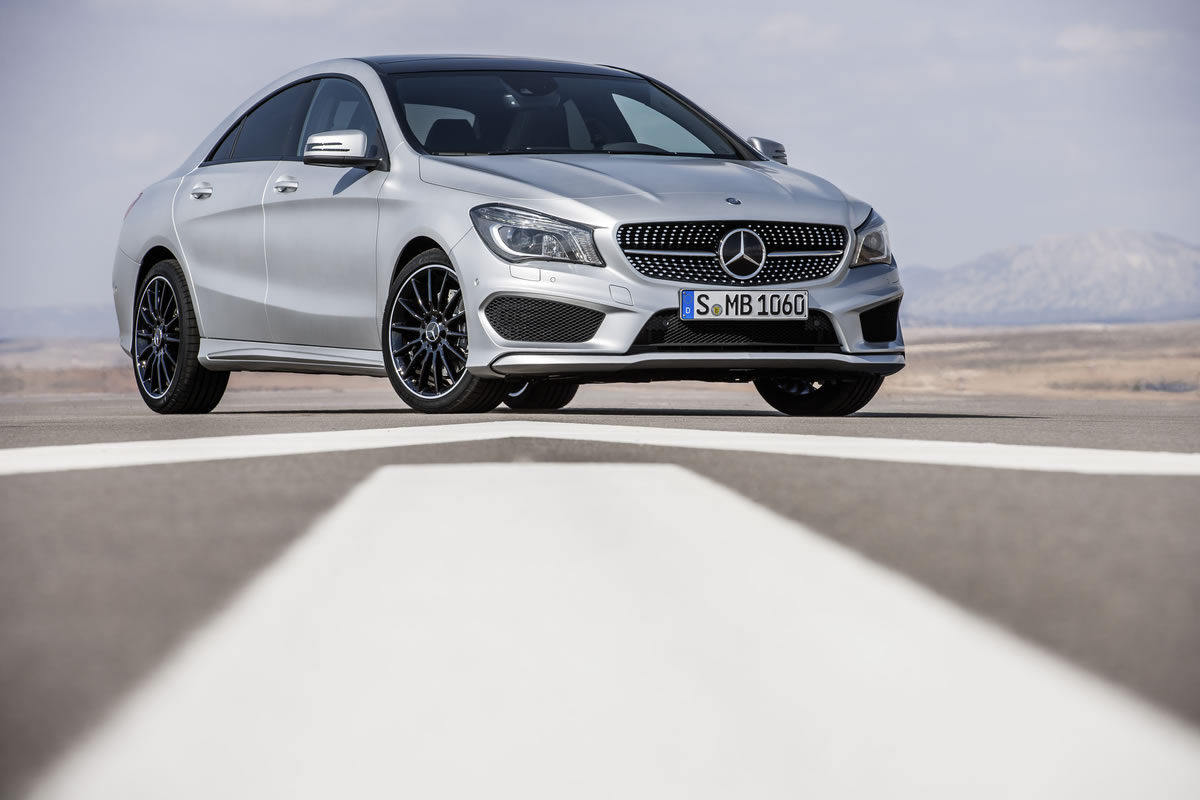

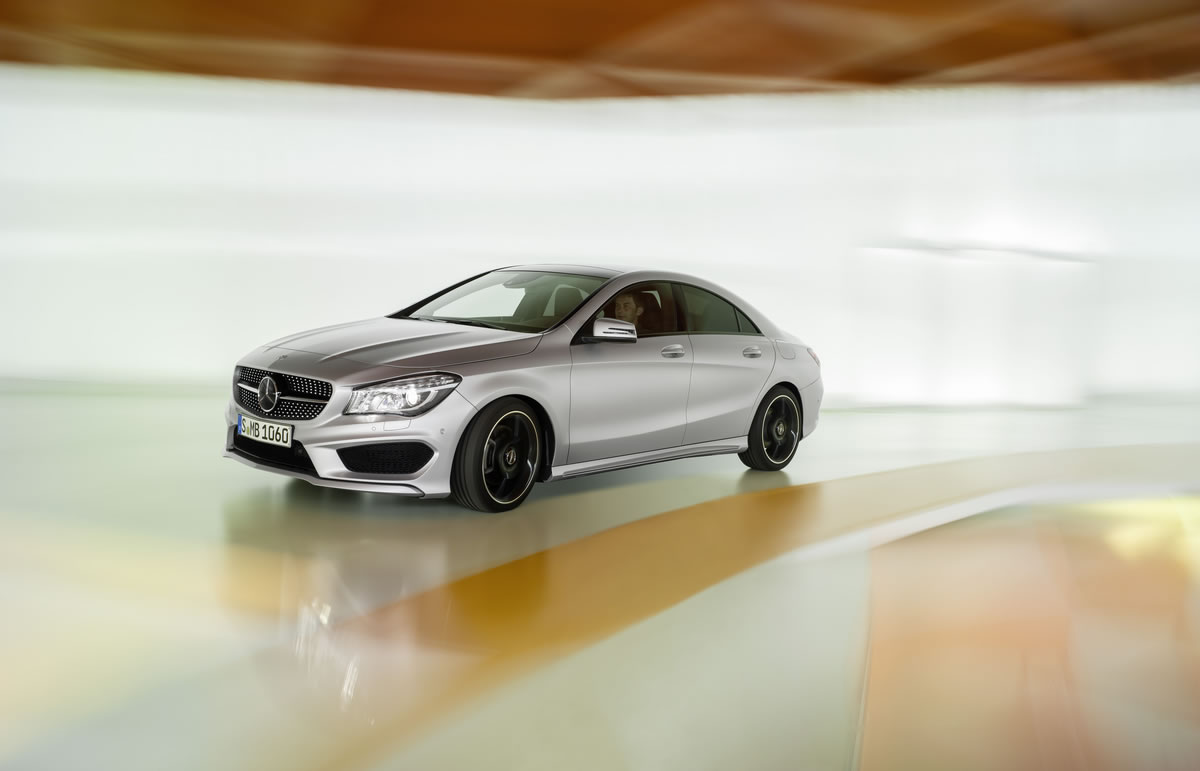

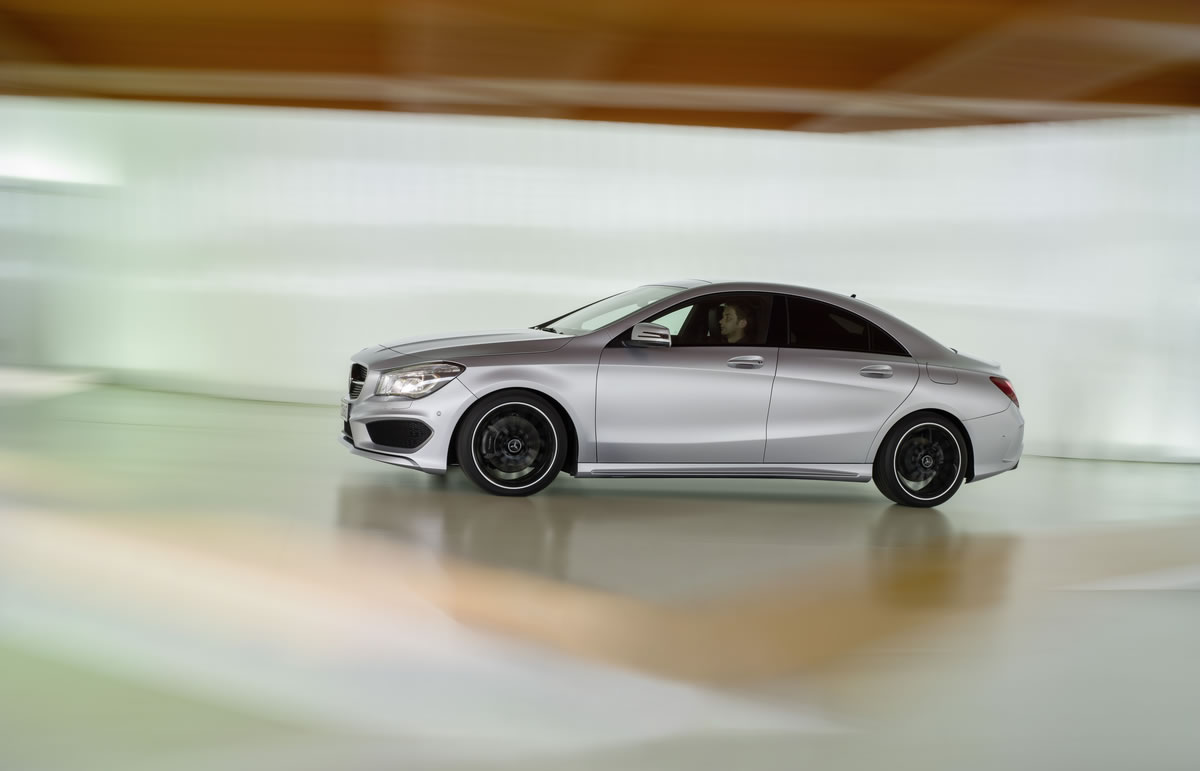

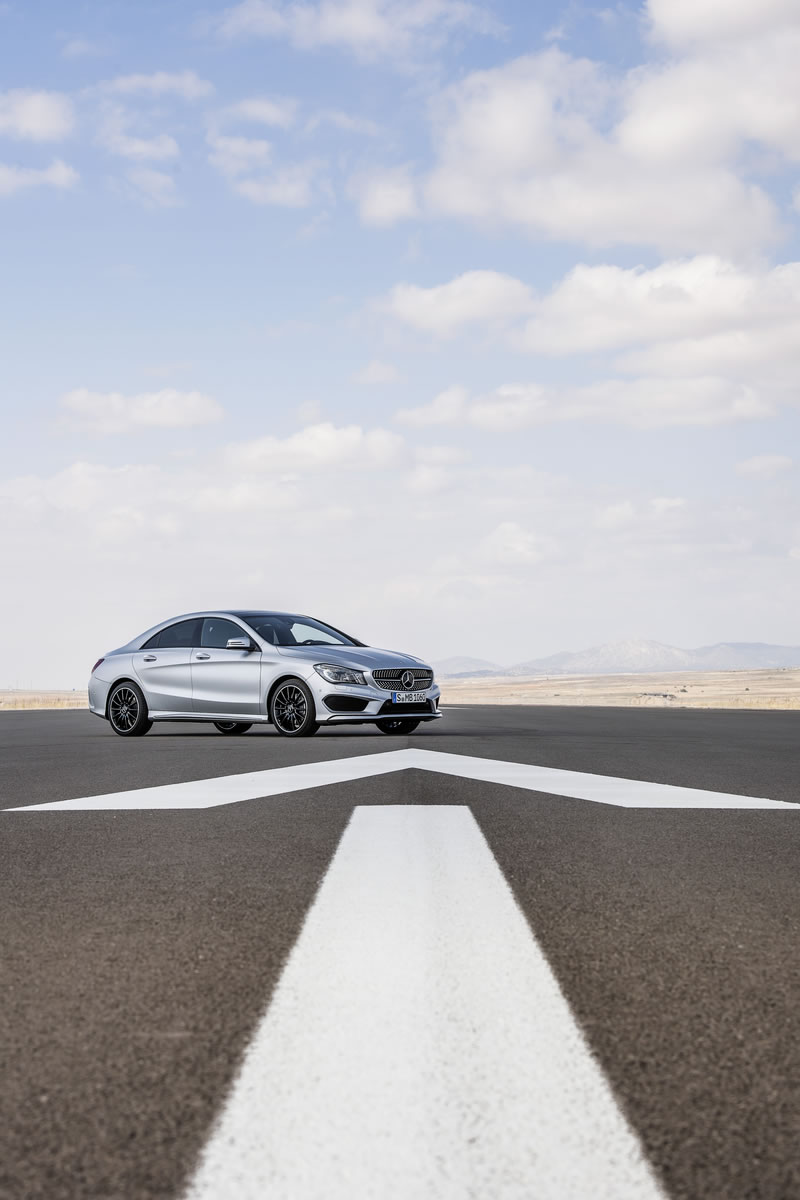

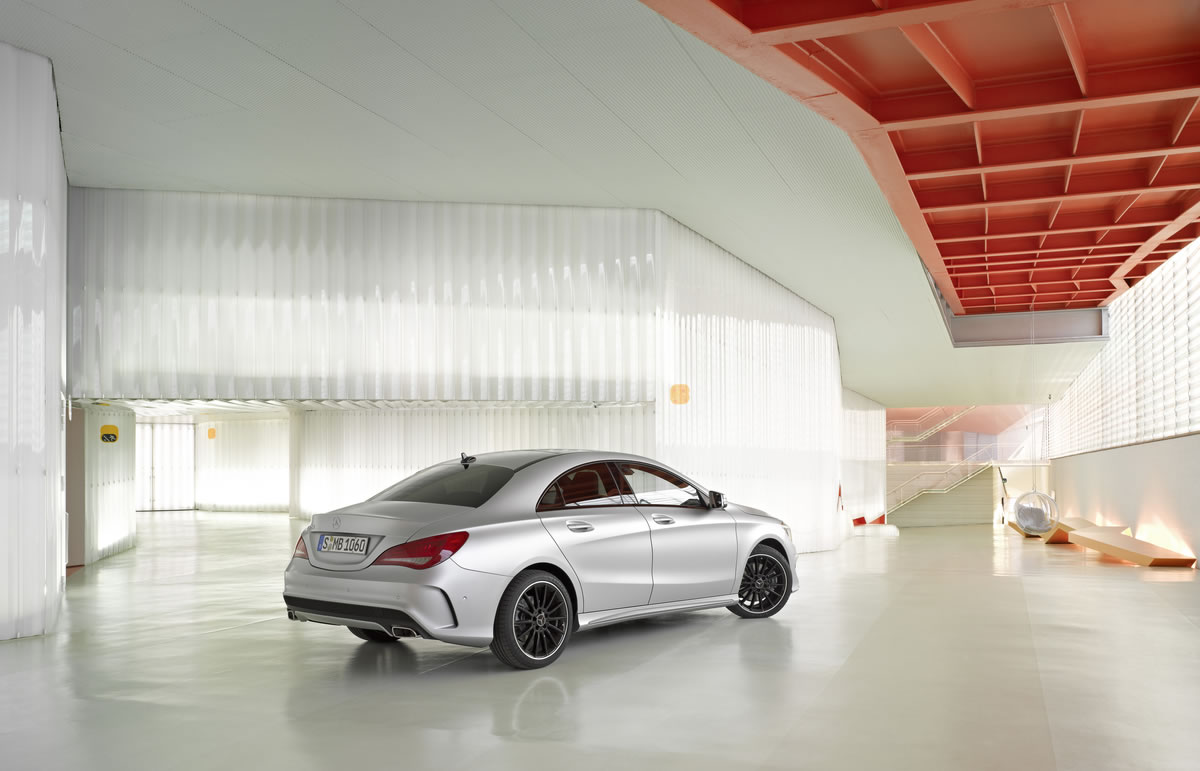

View the photo gallery

The new four-door coupe is being called a style rebel.  It takes the majority of its design cues from the CLS four-door coupe, whose design concept has inspired imitators from nearly all other competing car brands since its world debut in Detroit ten years ago in 2003.

But enough about the design, see for yourself in the photo gallery below.  Looking for technical specs and the equipment list, continue scrolling for an easy to read quick reference guide.

Or, for yet another view of the CLA-Class, click here to check out Kate Upton‘s CLA Commercial.

2014 Mercedes-Benz CLA Technical Data

CLA250
Vehicle type 4 door, 5 passenger coupe
Chassis Steel Unibody
Engine Turbocharged 2.0-liter Inline-four Transversely mounted
Engine material Aluminum
Valve arrangement Four valves per cylinder
Valvetrain Roller-type Rocker Arm
Displacement (cc) 1,991
Bore (in.) 3.27
Stroke (in.) 3.62
Compression ratio 9.8 : 1
Horsepower @ rpm 208 @ 5,500
Torque (lb-ft.) @ rpm 258 @ 1,250 – 4,000
Intake system Turbo, Direct Injection
Max. engine speed (rpm) 6,500
Transmission 7-Speed Dual Clutch Automatic
Shift controls DirectSelect
Gear ratios
1 3.86:1
2 2.43:1
3 2.67:1
4 1.05:1
5 0.78:1
6 1.05:1
7 0.84:1
R -3.38:1
R2 “comfort mode” -
Final drive 4.13:1
Stability control ESP Stability Control
Traction control ASR
Suspension Sport Suspension
front McPherson w/ Spring strut & wishbone
rear Independent w/ Wishbones & control arms
Steering Rack-and-pinion, speed dependent electrical power assist
Turns, lock-to-lock TBD
Steering ratio 14.4 : 1
Turning cirlcle (ft.) 36.1
Wheels (in.) front 17 x 7.5
rear 17 x 7.5
Tires front 225 / 45 R17
rear 225 / 45 R17
Brakes
Disc diameter (in.) front 12.6
rear 11.6
Disc thickness (in.) front 1.2
rear 0.4
Exterior dimensions (in)
Wheelbase 106.3
Length 182.3
Width (excluding mirrors) 70
Height 56.6
Ground clearance (in.) 3.9
Track front 60.9
rear 60.8
Interior dimensions (in.)
Head room front 37
2nd / 3rd row 35.6
Leg room front TBD
2nd / 3rd row TBD
Shoulder room front 56
2nd / 3rd row 53.2
Cargo Length back row up TBD
back / mid row down 40.6
Cargo floor width (narrowest) 70.3
Capacities
Cabin volume (cu. ft.) TBD
Cargo volume seats up TBD
back/mid row down TBD
Curb weight (lbs.) 3,264 (est.)
Gross vehicle weight rating (lbs.) 4,334 (est.)
Towing (lbs.) N/A
Max. total payload (lbs.) 1,070
Fuel tank/reserve (gallons) 14.5 / TBD
AdBlue tank (gallons) N/A
Performance
0-60 (seconds) TBD
Top speed (mph) 149
Fuel mileage, city/hwy/comb TBD

Note: Technical specifications are subject to change. *with optional AMG Performance Package

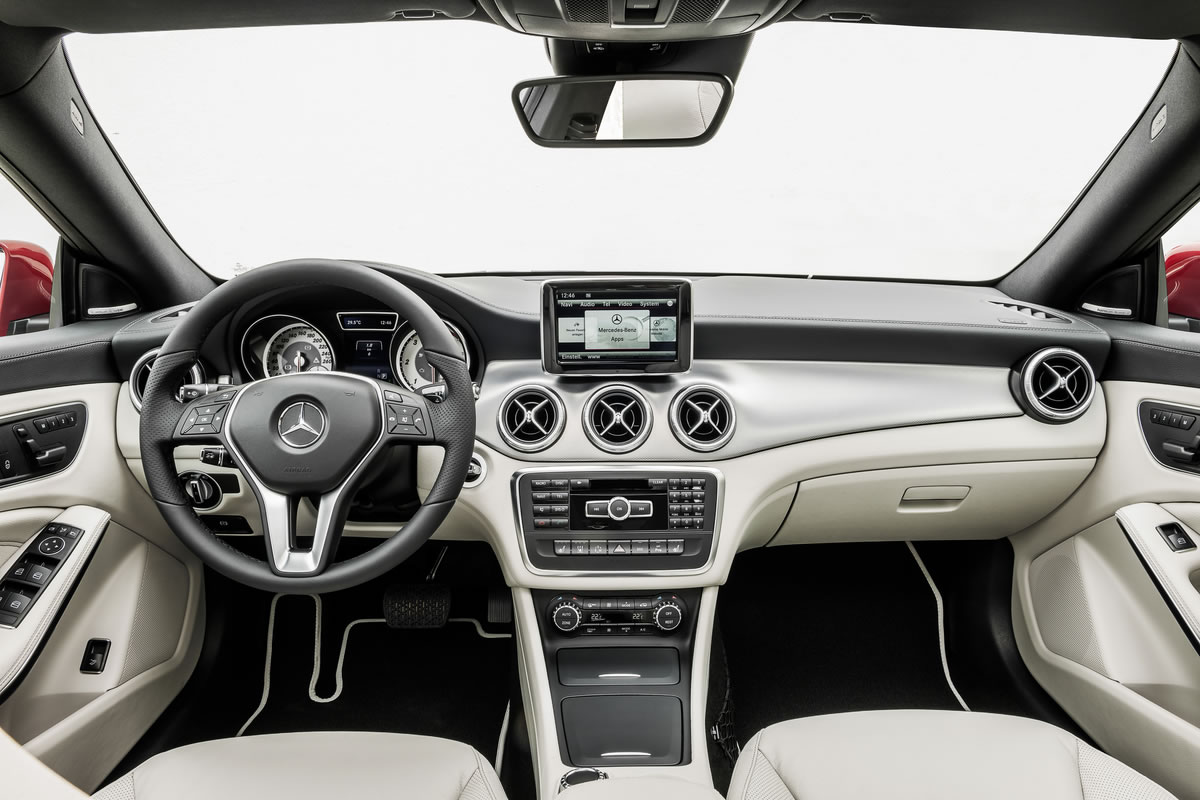

2014 Mercedes-Benz CLA 250 interior steering wheel

Standard Equipment List for the 2014 Mercedes-Benz CLA-Class

Comfort/Convenience

  • mbrace2 – In-Vehicle Technology Suite
  • 5.8” Display Screen
  • Central Controller
  • Color Instrument Cluster Display
  • Rain-Sensing Intermittent Windshield Wipers
  • Bluetooth Hands-Free Calling
  • Cruise Control
  • Power Driver Seat with 3-Position Memory
  • Twin Cup Holders
  • Exterior Chrome Trim
  • Air Conditioning
  • Rear Center Armrest
  • Floormats
  • MB-Tex Upholstery
  • Anthracite Trim

Performance/Handling

  • 208 Horsepower @ 5,500 rpm
  • 258 lb-ft @ 1,250 – 4,000 rpm
  • 2.0L inline 4–cylinder Turbocharged engine*
  • 7-Speed Dual Clutch Transmission*
  • ECO Start/Stop*
  • Electro-mechanical power steering*
  • 17” 5-spoke two-tone wheels
  • Dual Exhaust With Chrome Tips
  • Adaptive Brake with HOLD Function
  • Hill Start Assist
  • Sport Suspension
  • Leather Steering Wheel with Shift Paddles
  • All-Season Run Flat Tires

Safety/Security

  • COLLISION PREVENTION ASSIST*
  • ATTENTION ASSIST*
  • Tire Pressure Monitoring System
  • Anti-Theft Alarm System
  • Electronic Parking Brake
  • Driver Air Bags
  • Window Air Bags
  • Driver Knee Air Bag
  • Side Impact Air Bags
  • Remote Key with Panic Button

Optional Packages

Premium Package

  • iPod / MP3 Media Interface
  • SiriusXM Satellite Radio
  • harman/kardon LOGIC7 Surround Sound System with Dolby Digital 5.1
  • Heated Front Seats
  • Auto Dimming Mirrors
  • Integrated Garage Door Opener
  • Dual-Zone Climate Control
  • Compass

Sport Package*

  • 18” AMG Twin 5-Spoke Wheels
  • Sport Bodystyling

Multimedia Package

  • COMAND System w/ 7” Display Screen
  • Hard-Drive Navigation
  • Voice Control
  • SD Memory Card Slot
  • In-dash 6-disc CD/DVD changer
  • 10GB Music Register
  • Rearview Camera
  • SiriusXM Traffic & Weather

Driver Assistance Package

  • DISTRONIC*
  • Blind Spot Assist*
  • Lane Keeping Assist*

Stand Alone Options

  • 4MATIC all-wheel drive*
  • PARKTRONIC w/ Advance Parking Assist*
  • Panorama Sunroof*
  • Blind Spot Assist
  • Heated Front Seats
  • Burl Walnut Wood Trim
  • Black Ash Wood Trim
  • Bi-Xenon Headlamps with LED Daytime Running Lights
  • Becker MAP PILOT
  • 18-Inch 5-Twin Spoke Wheels
  • Summer Tires

Paint

Cosmos Black, Jupiter Red, Cirrus White, Night Black, Polar Silver, Mountain Grey, Universe Blue, Northern Lights Violet, Patagonia Red, Polar Silver Matte

Upholstery

Black MB-Tex, Beige MB-Tex, Ash MB-Tex, Black Leather, Brown Leather, Ash Leather

* highlight for 2014MY

READ MORE: Autos, Mercedes-Benz, C-Class

|

Find a Dealer

To learn more about the Mercedes C-Class, find a Mercedes-Benz dealer in your area.

01 / 31 >

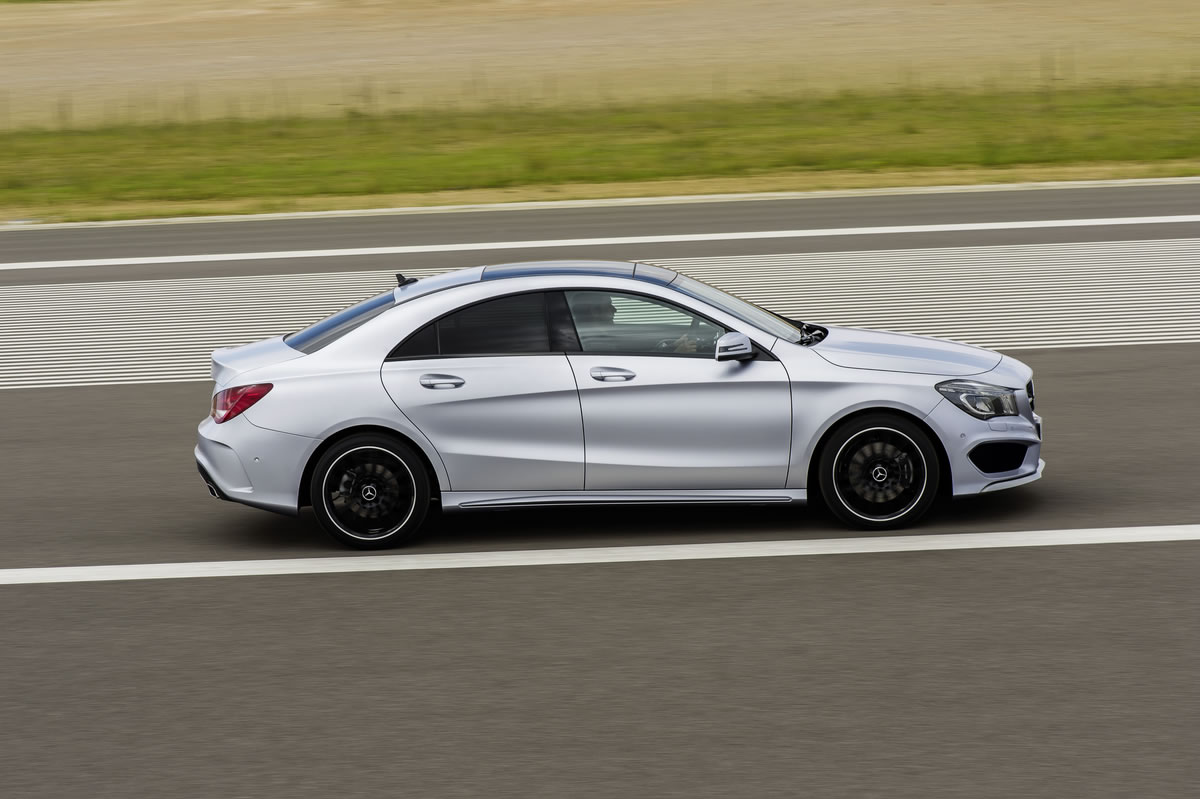

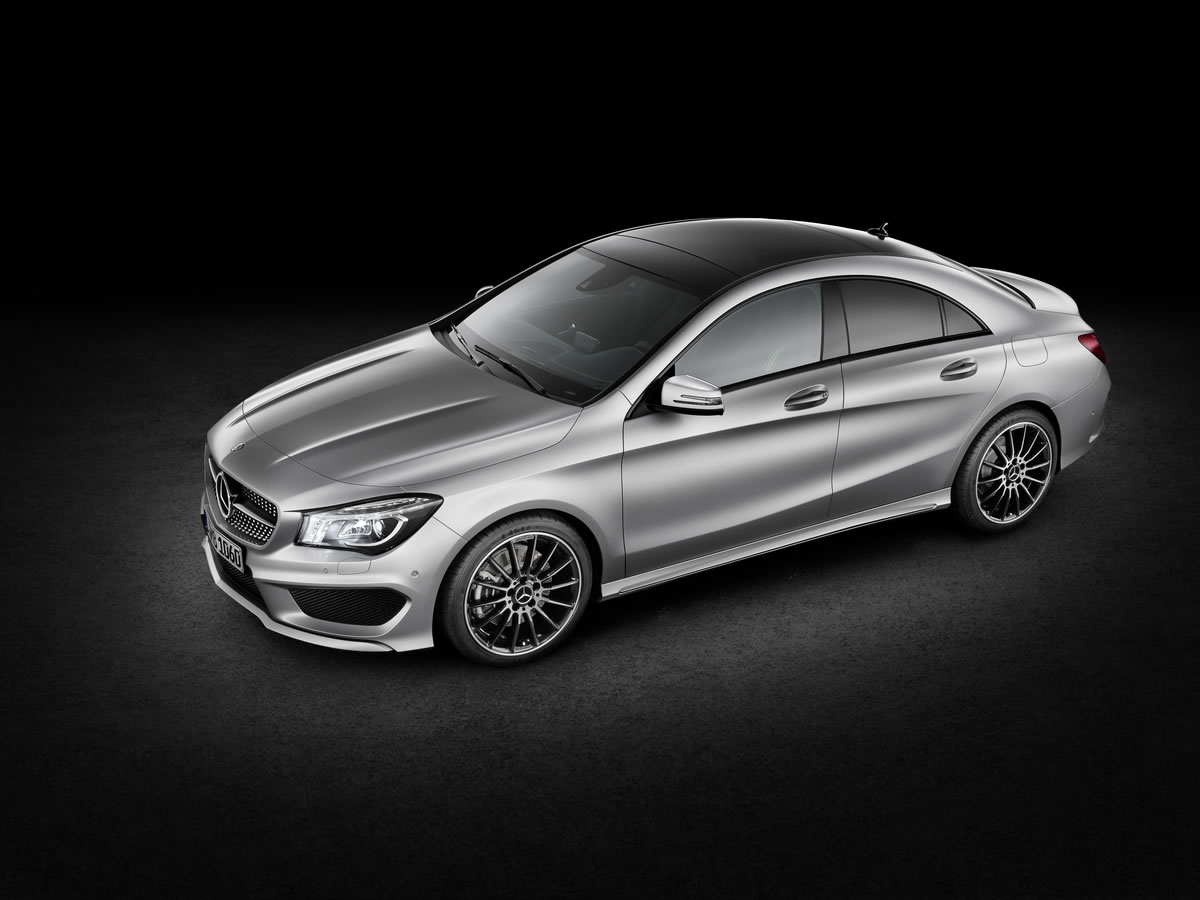

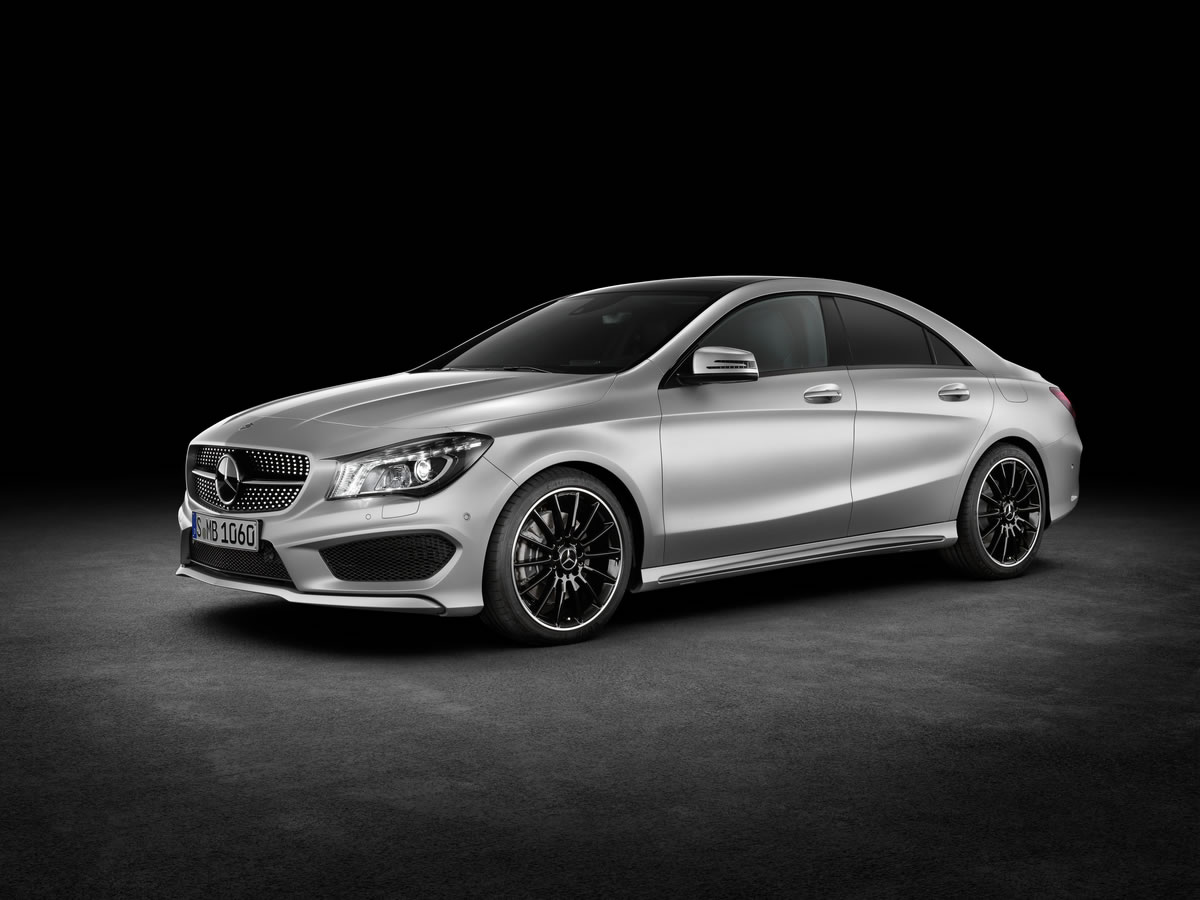

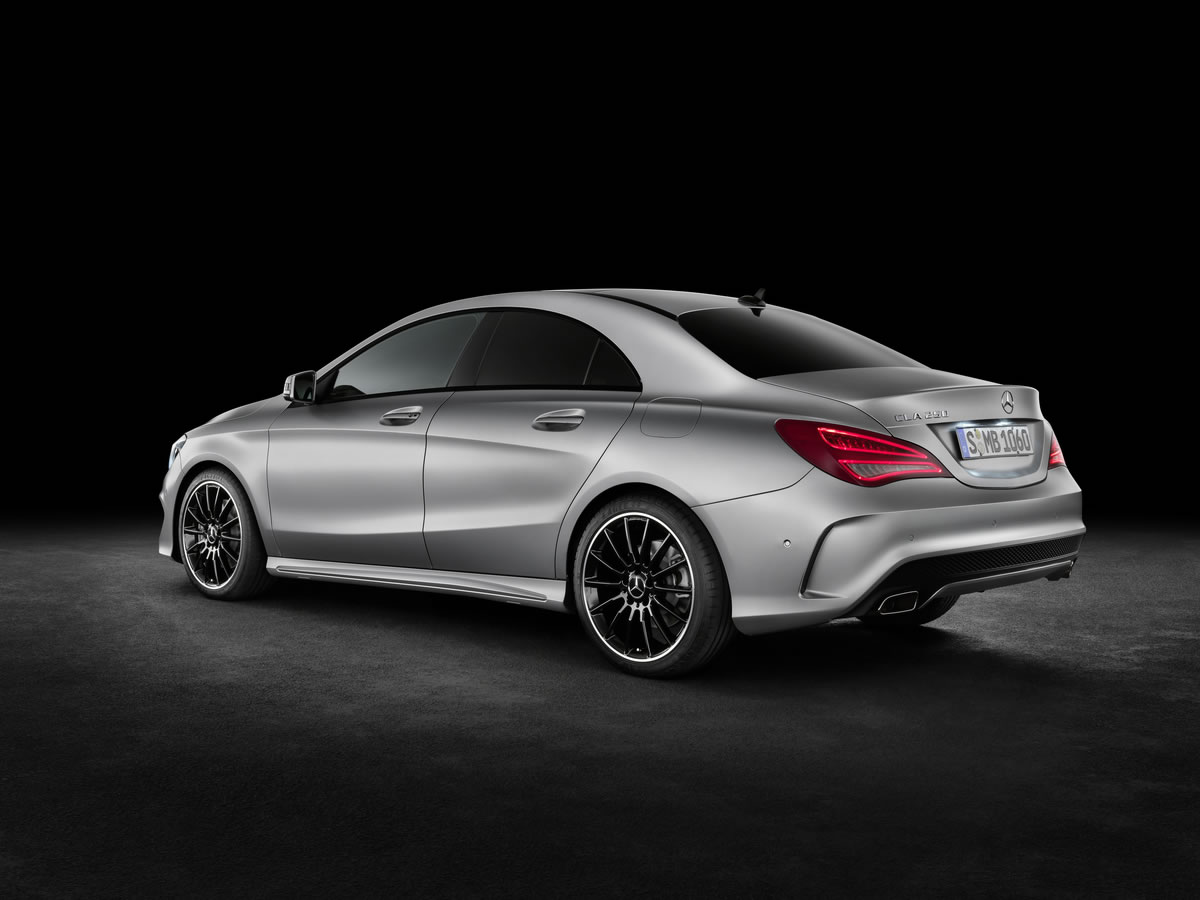

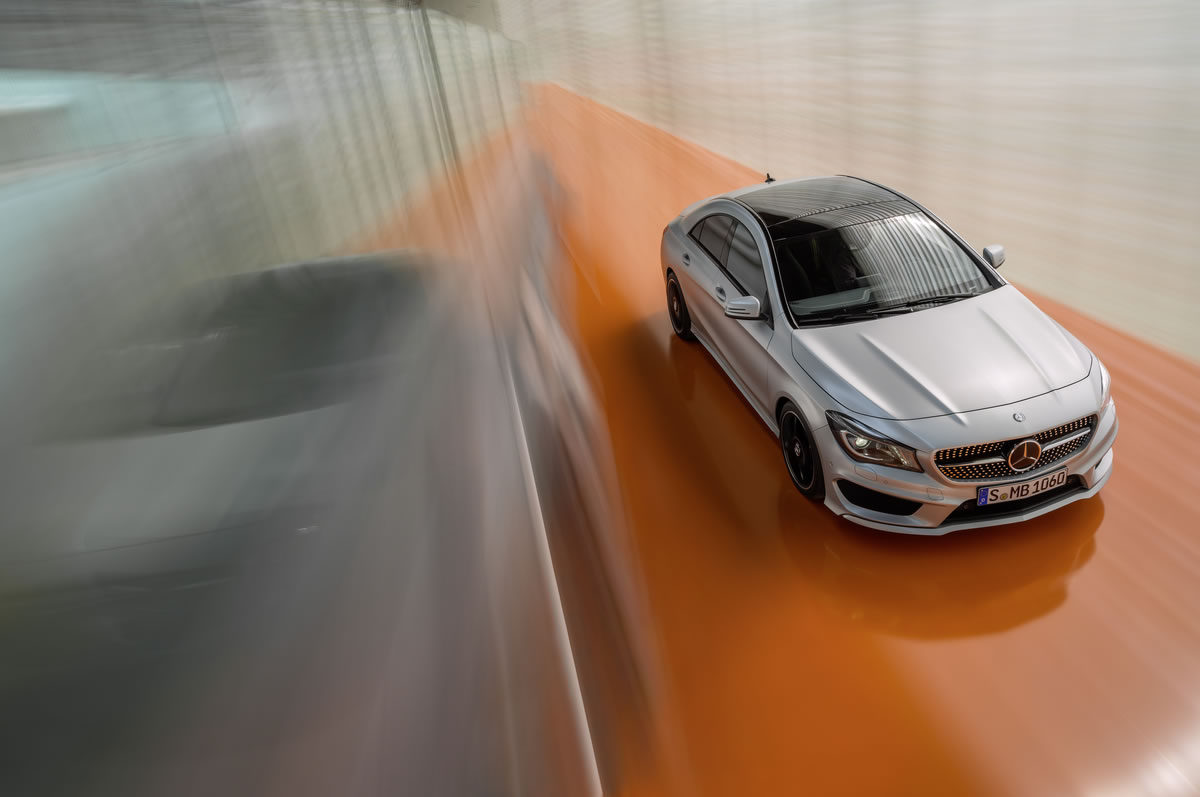

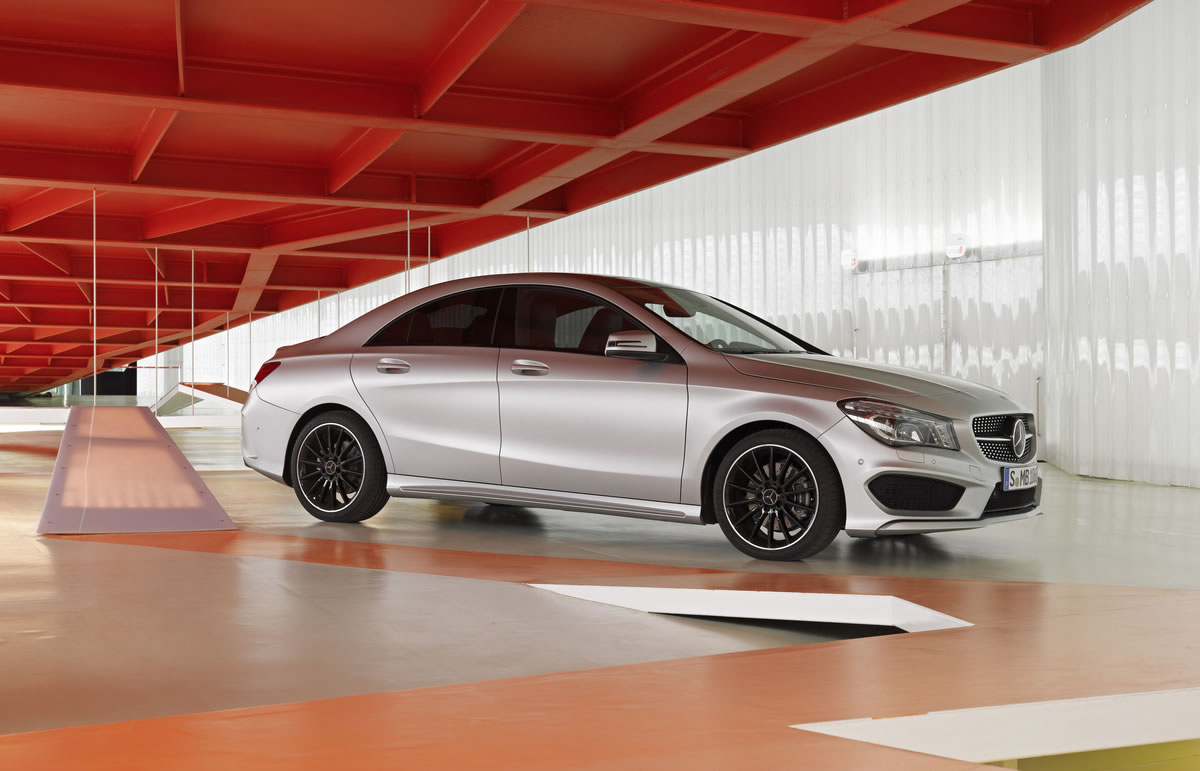

2014_CLA250_with_Optional_Sport_Package_24_medium
